| Basic Parameters | |
| Product Name | DC 60KW—80KW(compatible with 40kw-80kw) |
| Product Model | ZDDC-YTSQ60/ZDDC-YTSQ80 |
| Number of Charging Guns | Single gun/Dual guns |
| AC Input Voltage (V) | Three - phase 5 - wire AC380V±20% |
| AC Power Frequency (Hz) | 55HZ±10Hz |
| Output Voltage Adjustment Range (V) | DC200 -1000V |
| Output Current | 0 - 200A |
| Charging Method | Full power,AB equal charging |
| Starting Method | Card swiping,QR code scanning |
| Network Platform | Supports Dinghaochong, Yun Express Charging, State Grid, Qianjing Cloud, etc. |
| Overall Dimensions | 650*400*1500mm |
| Installation Method | Floor-standing |
| Display Method | 7-inch touch screen |
| Input Power Factor | ≥0.99 |
| Ripple Coefficient(%) | ≤±5 |
| Current-limiting Protection(%) | ≥110 |
| Voltage Stabilization Accuracy(%) | ≤±0.5 |
| Current Stabilization Accuracy(%) | ≤±1 |
| Efficiency(%) | ≥94 |
| Module Cooling Method | Forced Air Cooling |
| Noise Control | ≤65dB |
| Working Altitude | <2000m |
| Communication Interface | Ethernet,4G Optional |
| Working Ambient Temperature | -20℃-55℃ |
| Working Ambient Humidity | 5%-95%(No Frost) |
| BMS Auxiliary Power Supply | DC4V or DC12V |
| Protection Grade | IP54 |
| BMS Communication Protocol | GB/T 27930-2015(Standard National Communication Protocol) |
| Protection Functions | Over-voltage and under-voltage short-circuit protection,overload protection,leakage protection,lightning protection,short-circuit protection,emergency stop protection,and grounding protection. |
Basic Parameters Product Specifications 22kW Product Model ZD-JLDQ22 Installation Method Co...
Basic Parameters Product Name DC 120KW Floor-Standing Dual Guns Product Model ZDDC-YTSQ120 ...
Model RT 5120 Function Cell type LFP(LiFePO4) Available energy [1] 5.12 kWh Nominal volta...
>>> Product Overview The YBM series high/low voltage prefabricated substation, also know...
Model MANA 10.6 Pro MANA 16 Pro Function Cell type LFP(LiFePO4) LFP(LiFePO4) Available ener...
Model E-MATE 157R E-MATE 200R E-MATE 215R E-MATE 229R Function Battery module (Wh/V) 14.336 k...
Model E-MATE 500GP Function Battery module (Wh/V) 14.336 kWh，51.2 V,110 kg（242.5 Ibs） N...
>>> Product Overview The MNS series low-voltage switchgear assembly, also known as drawe...
Basic Parameters Product Name DC 160KW Dual Guns Product Model ZDDC-YTSQ160 Number of Charg...
Model RT 5320 Function Cell type LFP(LiFePO4) Available energy [1] 10.5 kWh Nominal volta...

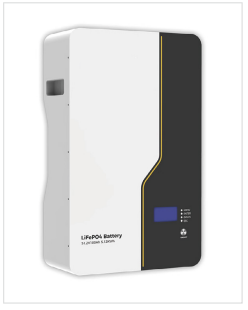

Model E-STONE 1.2 E-STONE 5.1 E-STONE 10.5 E-STONE 16.0 Function Cell type LFP(LiFePO4) LFP(L...
Basic Parameters Product Name 360KW/480KW Group Charging Rectifier Cabinet Product Model ZDPC...

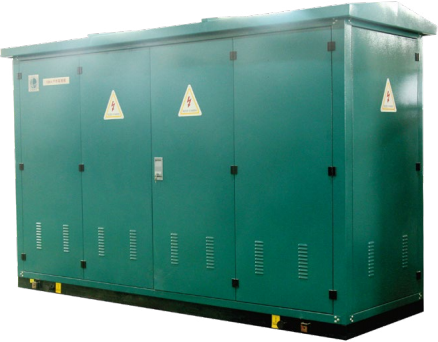

>>> Product Overview The XGW-12 series outdoor intelligent box-type switching station ad...
